Standing rigging
DF 20

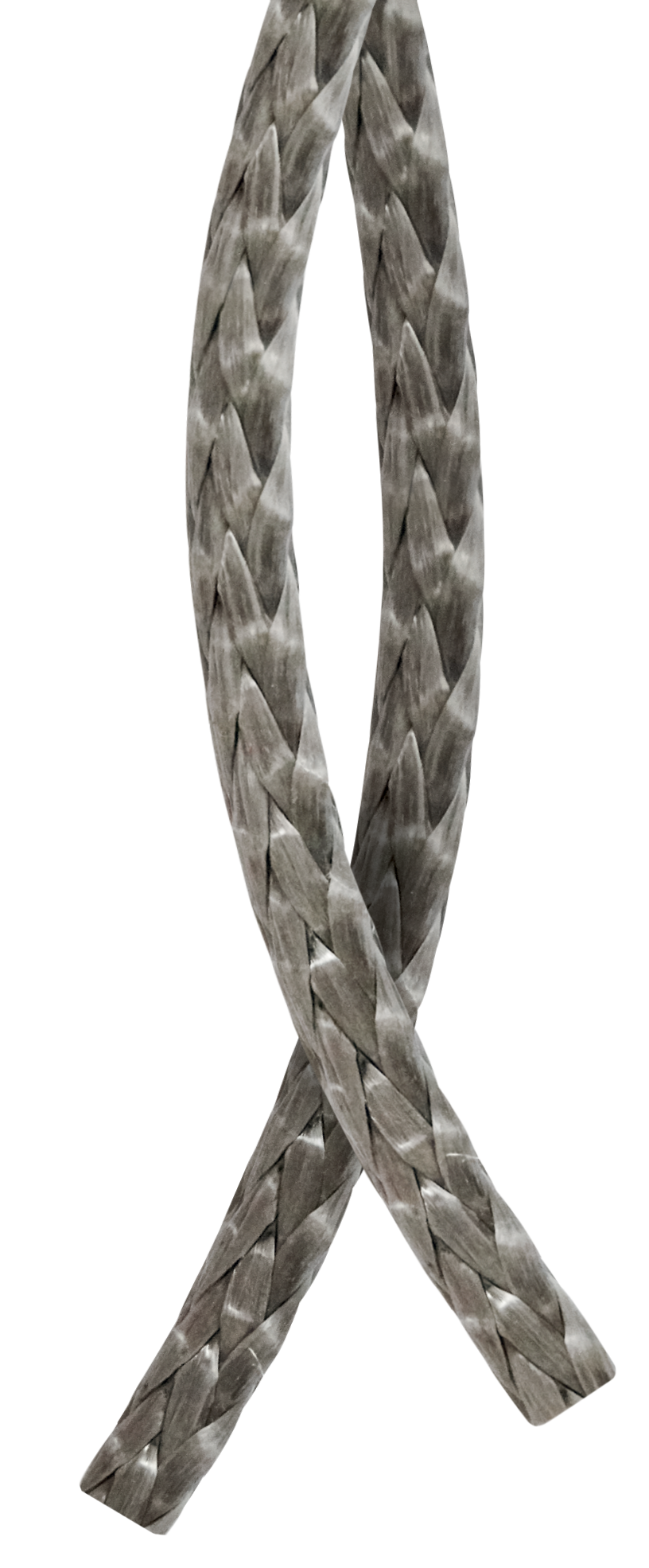

Coreless Dyneema® DM20 rope for standing rigging and lashing.
Overview
Maximum dimensional stability thanks to Dyneema® DM20 fibre with minimal creep. Ideal for standing rigging, lashing loops and connections.
Technical parameters
| Diameter | Breaking load | Weight | Colours |
|---|---|---|---|
| 3 mm | 1000 daN | 0.53 kg / 100 m | |
| 4 mm | 1700 daN | 0.8 kg / 100 m | |
| 5 mm | 2900 daN | 1.67 kg / 100 m | |
| 6 mm | 4280 daN | 2.1 kg / 100 m | |
| 8 mm | 8300 daN | 4.2 kg / 100 m | |
| 10 mm | 11000 daN | 5.5 kg / 100 m | |
| 12 mm | 14480 daN | 7.65 kg / 100 m |
Recommended use
Materials and construction
- Construction
- Coreless braid
- Core
- Dyneema® (HMPE)
- Suitable for
- Racing yachts, Small racing boats
- Available colours
