Category:
Standing rigging
| Standing rigging

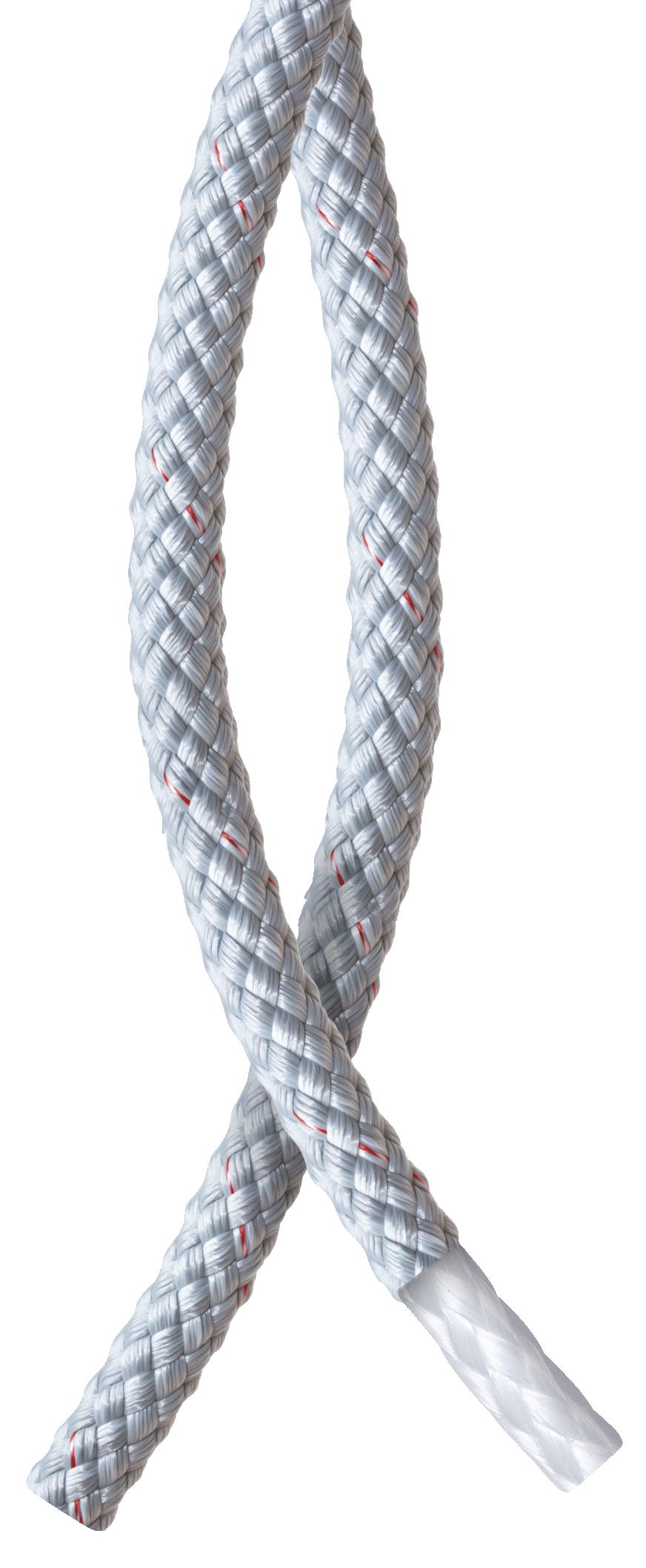

Construction: Double braid
Core: Dyneema DM 20
Cover: Polyester
Dyneema DM 20 core with no creep, zero long-term elongation and thin polyester cover against UV. Line is easy to splice and taper. A suitable replacement of standing rigging wires for long cruises.
Diameter | Breaking load | Weight | |||
---|---|---|---|---|---|
mm | inch | daN | lbs | kg/100 m | lbs/100 feet |
8 | 5/16 | 2500 | 5500 | 4 | 2.7 |
10 | 3/8 | 4000 | 8800 | 6.5 | 4.3 |
12 | 1/2 | 7000 | 15400 | 9.5 | 6.3 |
14 | 9/16 | 10000 | 22000 | 13.0 | 8.7 |
