Category:
Dock and Mooring Lines
Application: Docking Line
Construction: 3-strand twisted line
Material: Polypropylene multifilament

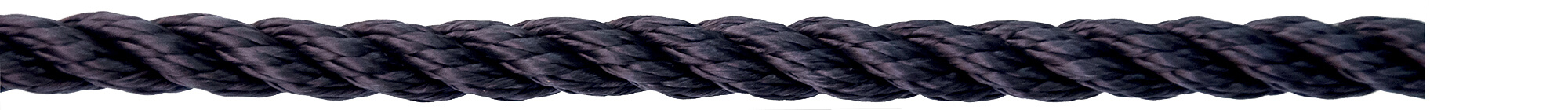

Malaga – conventional floating line with a simple construction and good UV resistance, very easy to splice.
| Diameter | Breaking load | Weight | |||
|---|---|---|---|---|---|
| mm | inch | daN | lbs | kg/100 m | lbs/100 feet |
| 4 | 5/32 | 319 | 702 | 0.7 | 0.5 |
| 6 | 1/4 | 670 | 1474 | 1.0 | 1.1 |
| 8 | 5/16 | 1180 | 2596 | 2.9 | 2.0 |
| 10 | 3/8 | 1700 | 3740 | 4.5 | 3.0 |
| 12 | 1/2 | 2500 | 5500 | 6.5 | 4.4 |
| 14 | 9/16 | 3350 | 7370 | 8.9 | 6.0 |
| 16 | 5/8 | 4250 | 9350 | 11.6 | 7.8 |
| 18 | 3/4 | 5300 | 11660 | 14.6 | 9.8 |
| 20 | 13/16 | 6300 | 13860 | 18.1 | 12.2 |
| 22 | 7/8 | 7500 | 16500 | 21.9 | 14.7 |
| 26 | 1 | 10600 | 23320 | 30.6 | 20.6 |
| 30 | 1-1/4 | 13200 | 29040 | 40.7 | 27.3 |
